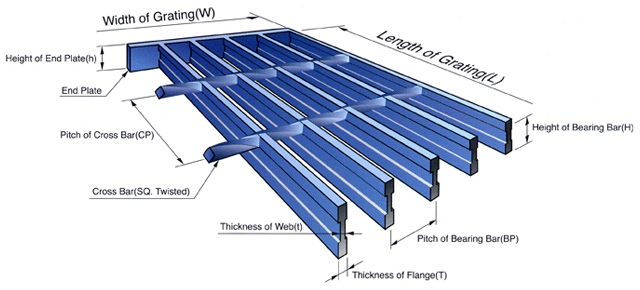

"Member Dimensions & Section Capability"
"Type of Loading Bearing Bar"
I-BAR/FLAT-BAR/SERRATED-BAR/SERRATED I-BAR
I-BAR TYPE |
I-25 |
I-32 |
I-38 |
I-44 |
I-50 |
I-50-S |
I-55 |
I-65 |
I-75 |
|---|---|---|---|---|---|---|---|---|---|
DIMENSION(mm) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
MOMENT OF INERTIA(Cm⁴) |
0.605 |
1.251 |
2.083 |
3.221 |
4.609 |
6.432 |
8.488 |
18.960 |
21.387 |
MOMENT OF INERTIA(Cm³ ) |
0.484 |
0.782 |
1.096 |
1.464 |
1.844 |
2.573 |
3.086 |
4.295 |
5.703 |
F-BAR TYPE |
F-25 |
F-32 |
F-38 |
F-44 |
F-50 |
F-50-S |
F-55 |
F-65 |
F-75 |
|---|---|---|---|---|---|---|---|---|---|
DIMENSION(mm) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
MOMENT OF INERTIA(Cm⁴) |
0.651 |
1.365 |
2.286 |
3.549 |
5.208 |
6.250 |
8.319 |
13.731 |
21.094 |
MOMENT OF INERTIA(Cm³ ) |
0.521 |
0.853 |
1.203 |
1.613 |
2.083 |
2.500 |
3.025 |
4.225 |
5.625 |
PITCH(mm) |
12.5 / 15 / 30 |
30 / 35.3 / 40 |
35.3 / 40 |
|---|---|---|---|
DIMENSION(mm) |
 |
 |
 |
"Pitch of Loading Berring Bar"
* |
H19-H25 |
H19-H25 |
H19-H38 |
H25-H44 |
H50-H75 |
H80-H100 |
|---|---|---|---|---|---|---|
TYPE |
 |
 |
 |
 |
 |
 |
